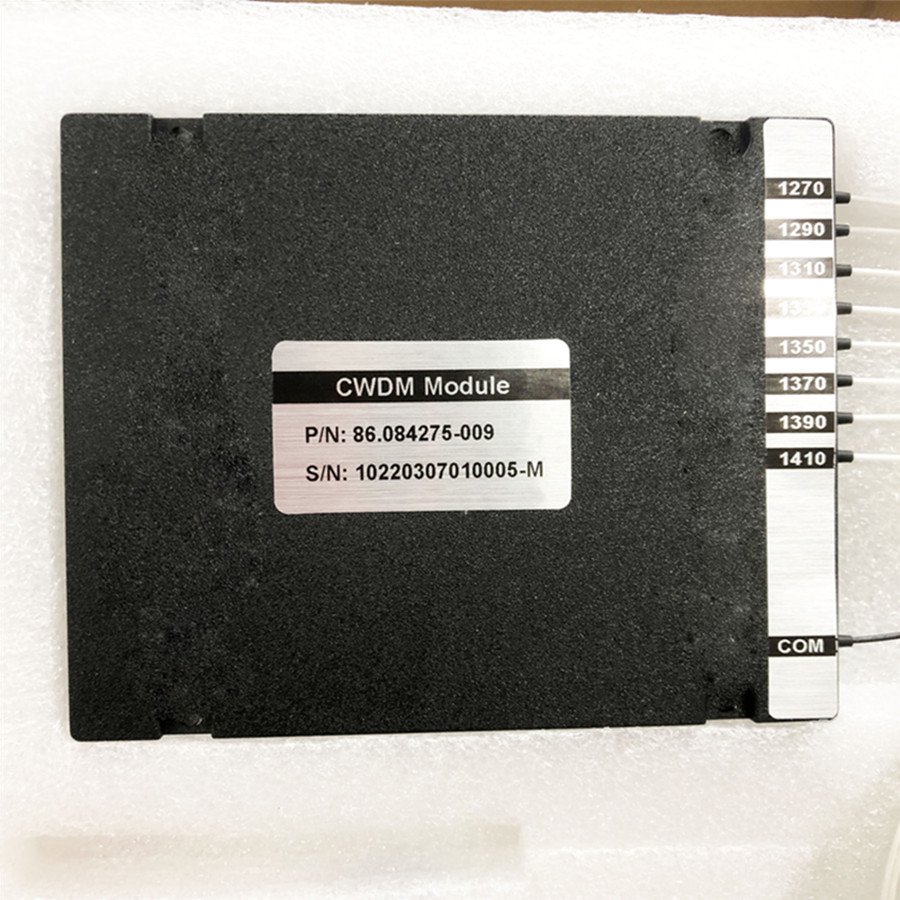

| CWDM OADM Module(4,8,16,18-Channel) | |||||||
| Performance Specifications | |||||||
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength（nm） | 1270~1610/1271~1611 | ||||||
| Channel Spacing（nm） | 20 | ||||||
| Channel Passband (@-0.5dB bandwidth)(nm) | ±7.5/±6.5 | ||||||
| Insertion Loss（dB） | ≤1.5 | ≤2.5 | ≤3.5 | ||||
| Channel Uniformity（dB） | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple（dB） | <0.3 | ||||||
| Isolation（dB） | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
| Insertion Loss Temperature Sensitivity(dB/℃) | <0.005 | ||||||
| Wavelength Temperature Shifting(nm/℃) | <0.002 | ||||||
| Polarization Dependent Loss（dB） | <0.1 | ||||||
| Polarization Mode Dispersion（ps） | <0.1 | ||||||
| Directivity（dB） | ＞50 | ||||||
| Return Loss（dB） | >45 | ||||||
| Maximum Power Handling（mW） | 300 | ||||||
| Operating Temperature(℃) | -5~+75 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Package dimension(mm) | A: L100×W80×H10 | ||||||
| L120×W80×H18 | |||||||
| L141×W115×H18 | |||||||
| 1、Above specifications are for devices without connector. | |||||||
| 2、Specifications may change without notice. | |||||||
