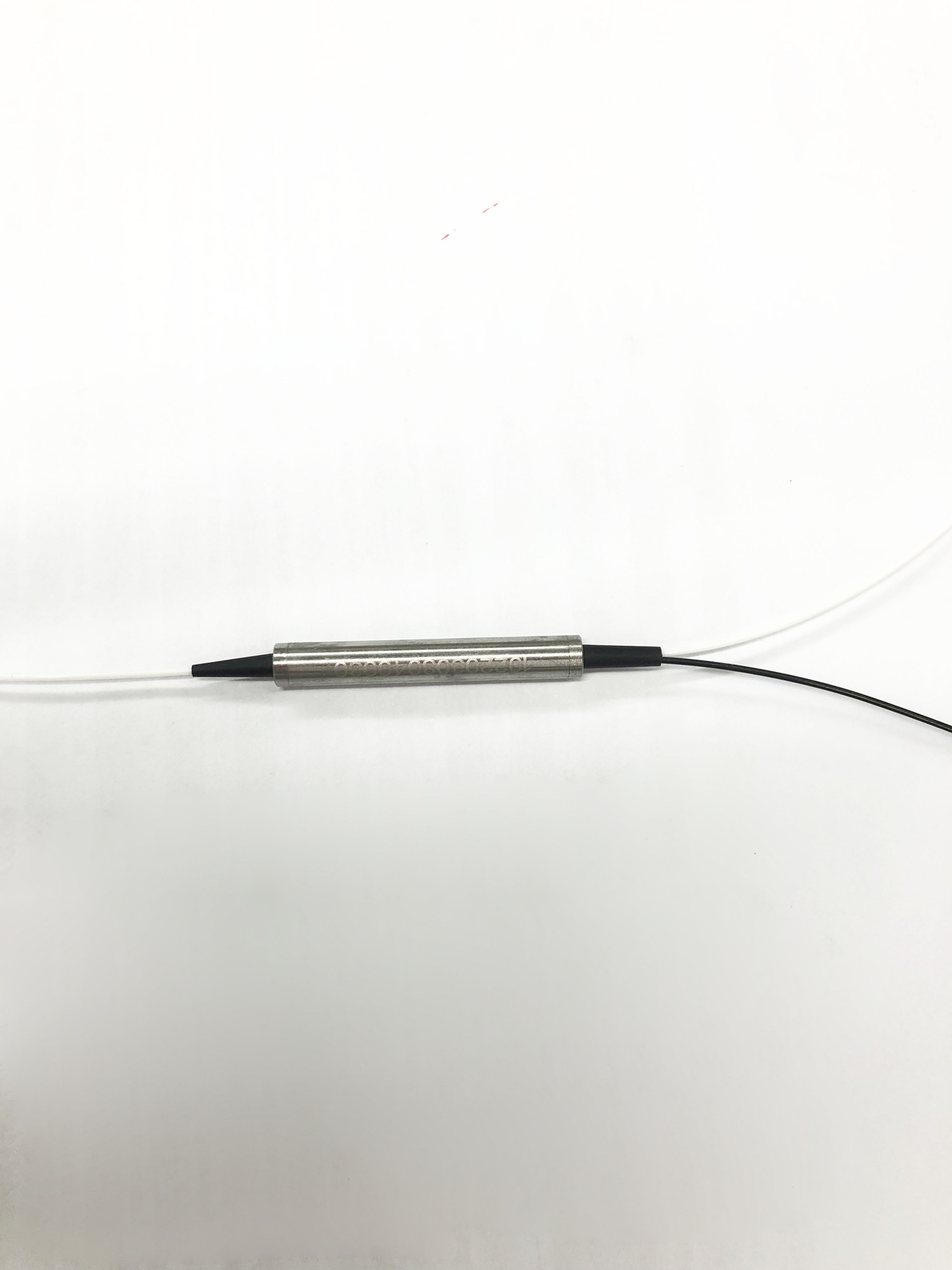

| 1x2 CWDM Device(3 Ports) | |||||
| Performance Specifications | |||||
| Parameter | Specification | ||||
| Channel Wavelength (nm) | 1270~1610 or 1271~1611 | ||||
| Channel Spacing（nm） | 20 | ||||
| Channel Passband (@-0.5dB bandwidth (nm) | >13 | ||||
| Pass Channel Insertion Loss (dB) | ≤0.6 | ||||
| Reflection Channel Insertion Loss (dB) | ≤0.4 | ||||
| Channel Ripple (dB) | <0.3 | ||||
| Isolation (dB) | Adjacent | ≥30 | |||
| Non-adjacent | ≥40 | ||||
| Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||
| Polarization Dependent Loss (dB) | <0.1 | ||||
| Polarization Mode Dispersion（ps） | <0.1 | ||||
| Directivity (dB) | ＞50 | ||||
| Return Loss（dB） | ＞45 | ||||
| Maximum Power Handling (mW) | 300 | ||||
| Opterating Temperature (℃) | -20~+75 | ||||
| Storage Temperature (℃) | -40~+85 | ||||
| Package dimension (mm) | Φ5.5xL38 | ||||
| 1、Above specifications are for devices without connector. | |||||
| 2、Specifications may change without notice. | |||||
